Pilot Manual



Available in three sizes: 40 mm, 43 mm or 45 mm - Price from 1,850.00 Euro



Specifications:

manufactured watch case

40 mm, 43 mm or 45 mm diameter

48 mm, 50 mm or 52 mm lug to lug

22 mm strap wide

10.4 mm, 10.6 mm or 14.45 mm height (inlcuded domes crystal)
Stainless steel watch case (Made in Germany)

Watch case brushed with polished bezel

Domed special sapphire crystal

Display sapphire case back or solid case back

5 ATM WR
Glass seals UV-resistant

Galvano-black dial with C3 luminous material (Made in Germany)
Heat-blued steel hands with C3 luminous material (Swiss Made)
TRITEC luminous material (Swiss Made)

Swiss Made manual wound movement (based on ETA Unitas 6498-2)

17 Jewels, 21.600 A/h beats per hour, power reserve 60 hours

Fine adjusted in 5 positions

Precision -2/+8 sec/day, after casing

Shock-resistant according to DIN 8308 Norma
Anti-magnetic according to DIN 8309 standard
hand-stitched leather bands (Made in Germany)
tang buckle

Shipped in an attractive trvael Leather case



Prices:



**** free shipping worldwide***



Delivery time within 4 weeks



Price (NET excluded VAT):

Pilot Basic * 1.850 Euro

Upgrade Top Grade + 800.00 Euros



Upgrades: (Please click on the text for more informations):

change to solid case back * free of charge

genuine alligator skin strap + 100.00 Euro

Change to straight crown * free of charge

Folding clasp + 75.00 Euro

rose gold plated (PVD) 43 mm watch case + 200.00 Euro

Artificially aged + 250.00 Euro



The Pilot 40

Model A

At the beginning of the 20th century, pilot's watches were developed to meet the needs of pilots, who primarily wore them over their leather jackets as technical aids during the two world wars. At that time, aviation was one of the most modern engineering and pioneering achievements, and so many watch companies competed to build the best pilot's watches. Special features of a pilot's watch are the enormous size, a non-slip crown, the simple look, the robust construction and, above all, the good readability. Most of the time there was no logo or date. The readability should also be possible later in the evening, which is why Luminova was used exclusively for the dials and hands. Another distinctive feature of pilot's watches is the triangle at the 12 o'clock position. The crown was usually very large and easy to grip, so that the watch could also be operated with gloves. In Germany, two dial variants in particular have become established: model A and model B. Model A has a very simple design, has luminous numerals, a minute track and the triangle at 12 o'clock. Here we limit ourselves to the essentials. The B models have the hours displayed in the inner circle and the minutes displayed in the outer circle. The dial model B is designed more complex. Tourby use only model A for their pilot´s watches.



Live pictures 40 mm model

Even if it looks less professional on a official website, you can only see the quality of the watches from live-pictures. All watches look great on official product images. Even the cheap ones. But in order to get an accurate feeling of the watches, you have to hold them in your hand. These often have a completely different effect. However, since our customers mostly order online and cannot view the watches beforehand, our pictures must be as authentic as possible.

The Basic Movement

The Base movements comes free of extra charge. Choose your favorite.

Silver

The silver version is sand blasted and has a skeletonized balance bridge, blued screws and skeletonized winding wheels.


Gold

The gold version is sand blasted and has a skeletonized balance bridge, blued screws and skeletonized winding wheels.


Black

The black version is sand blasted and has a skeletonized balance bridge and skeletonized winding wheels.


Rhodium

The rhodium-plated version is finely decorated with Cotes de Geneve, blued screws and finished winding wheels.

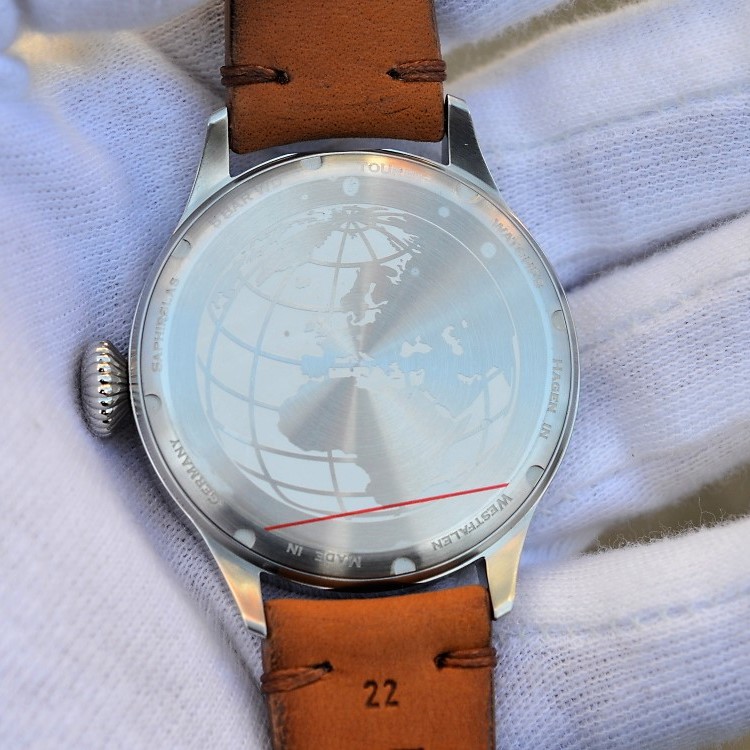

The Case Back

You can choose between closed or display case back (the picture shows the Top Grade movement for + 800.00 Euros).

The Big Pilot 45

Model A

Although pilot watches are very simple, the construction and design of these watches can often be very difficult. Tourby Flieger watches are known worldwide as one of the most beautiful models and they are collected by people all over the world. Considering the technical requirements, the striking design made by the company's founder, Erdal Yildiz faced a very big challenge. Through his years of experience in the watch industry and his technical knowledge, he has succeeded in creating a beautiful timepiece. The hands are an perfect length and reach almost to the end of the minute track. The contrast of blue and greenish on the hands is best for readability with the simplicity of the dial. On Tourby Watches big pilot C3 Superluminova is used. It is best Swiss Superluminova with optimum brightness. Superluminova will glow for many hours at night and making the watch able to br read at anytime of the night.



The dial design is not new or innovative but Tourby has kept strictly to historical specifications and added to the simple design with his own touches. On a pilots watch we typically find a triangle at 12 o'clock position. In keeping with the historical design Tourby has not printed their logo on the dial. Tourby works primarily with pocket watch calibers that always come with a small seconds hand. It is important to place the small second hands in as unobtrusive placement as possible. Tourby has made it so the little second hand does not affect the overall layout of the dial and none of the numbers on the dial are cut. This may sound very simple but now the idea is being copied by many other manufacturers around the world. Even the big watch brands with outrageously expensive pilot watches have not managed a small second or a chrono hand on the dial without cutting the numbers. For many collectors the cut numbers on the dial are not nice asesthetcally. Tourby was one of the first watch manufacturers who placed a high value on this. Meanwhile it is now copied by the entire watch industry, previously Tourby was ridiculed for this unconventional design but now after a decade, almost every pilot's watch is built to Tourby's design.



Tourby has always developed and designed the watches completely by himself inspired by designs that he always loved himself. He is a perfectionist, so as often happens a design will be revised many times until he is finally satisfied. He relies entirely on his own good taste, his customers wanted an aviator watches with one thing: size. Tourby did not just want to only impress with its size but a watch that would also technically make sense and is comfortable. A pilot watch should be large but still suitable for everyday use. Even with the desire of many customers for a thickness of 18mm would not be made as it would render they unable to be worn comfortably as and everyday watch. The Cal. ETA 6498 would be too shallow at 4.5 mm for such a high watch case. The movement in such a case would almost disappear and the dial would very deeply seated impairing its view. From the underside the movement would also be set too deep in the case.  Due to these factors Tourby opted for a 14.45 mm case included a high domed and anti-reflective sapphire glass. The lugs are rounded down and thus offer best comfort for smaller wrists. With this design the strap can completely wrap around the wrist and leaves no gap between watch and wrist. Many customers are surprised how well a 45mm aviator's despite its size watch wears, even with smaller wrists. The excellent design of the the 45 mm aviator's case wears as alomst the same as the 42mm pilot watches.



An important point in aviator watches is the crown. It should be large and easy to grip because the pilot's watches were often used while wearing gloves. Therefore often large onion or diamond crown were used. The very popular diamond crowns have the disadvantage that they would rub on your wrist which can be uncomfortable. The airmen from the 2nd World War did not have this problem as they wore their watches over their leather jacket and you usually wore leather gloves. Today however, most customers are aware this, nevertheless no one wants to give up a large diamond crown as it is one of the characteristics of a pilot's watch. Tourby has solved this problem by rasing the position of the crown slightly and the the edges of the crown slightly rounded so there is no sharp edges. Despite daily use the crowns of Tourby not scratch or dig into your wrist.



Live pictures 45 mm model

Even if it looks less professional on a official website, you can only see the quality of the watches from live-pictures. All watches look great on official product images. Even the cheap ones. But in order to get an accurate feeling of the watches, you have to hold them in your hand. These often have a completely different effect. However, since our customers mostly order online and cannot view the watches beforehand, our pictures must be as authentic as possible.

The Case Back

You can choose between closed or display case back (the picture shows the Top Grade movement for + 800.00 Euros).

Customer pictures
